Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-HXQ-03046A |
Minimum Order Quantity: | 10000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000000 pcs per month |
Product Name: | Commutator | Size: | Customers' Requirement |
---|---|---|---|
Application: | Apply To Automotive Industry, And Other Motors. | Type: | Slot |
OD: | 37.5 | ID: | 14 |
Total Height: | 42 | Segment Lenth: | 38 |
Highlight: | Power Tool Commutator Armature,Starter Motor Commutator Armature,Armature Commutator Electric Motor Spare Parts |

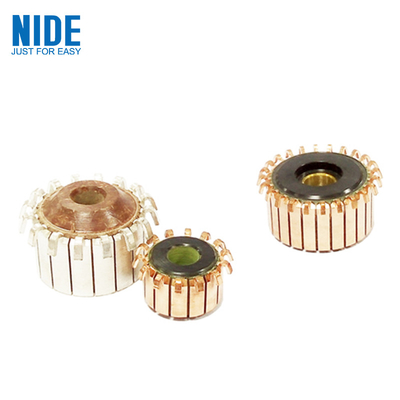

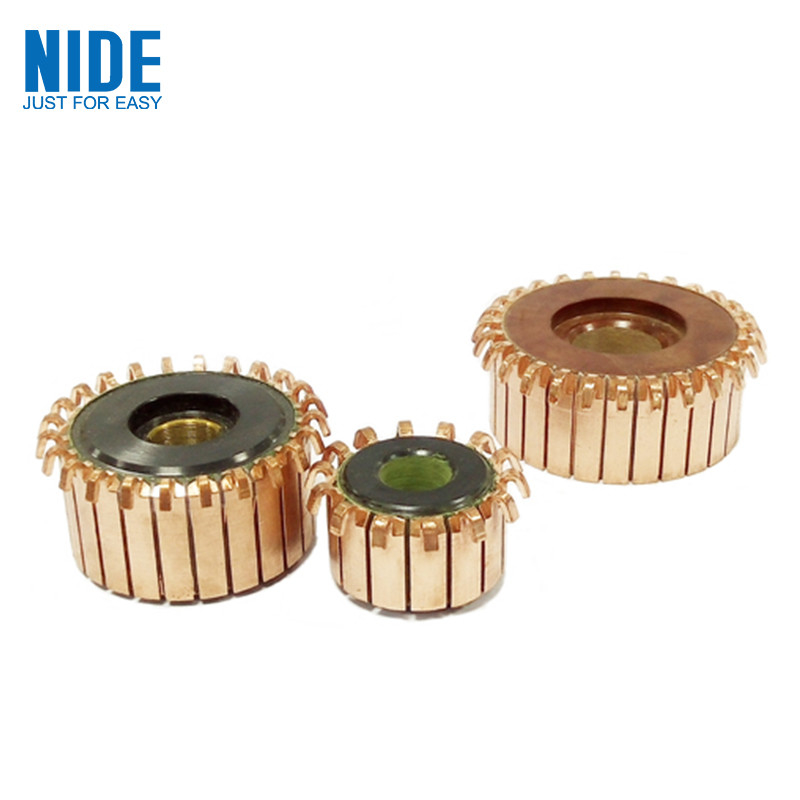

23 Bar Copper Starter Motor Commutator Armature For Power Tool
Starter Motor Commutator Armature For Power Tool
Product name: | Micro DC motor part commutator |
OD | 37.5 |
ID | φ14 |
Total Height | 42 |
Segment Length | 38 |
Hook/Riser dia. | 49.5 |
Bar No. | 23 |
Description:
Nide commutator covers a wide range, more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.
Competitive advantages:
1.We directly supply our products to many countries.
2. Our commutator has a wide application, such as automotive industry, household appliances, hammers, planers and etc.
3. We have a wide range of commutator. Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm.
4. We could customize commutator for our customer.
Technical specification
1. resin surface, free of bubble and crack
2. spin test: 200ºC, 3000r/min, 3min, radial deviation <0.015, bar to bar <0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, >50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type
Materials | 0.03% or 0.08% sliver copper or customized |
Dimension | Customized |
Commutator type | Hook type/Raiser type |
Application | apply to automotive industry, power tools, household appliances, and other motors |
Package | Suitable for land and sea transportation |
Production capacity | 1000000pcs/month |
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
