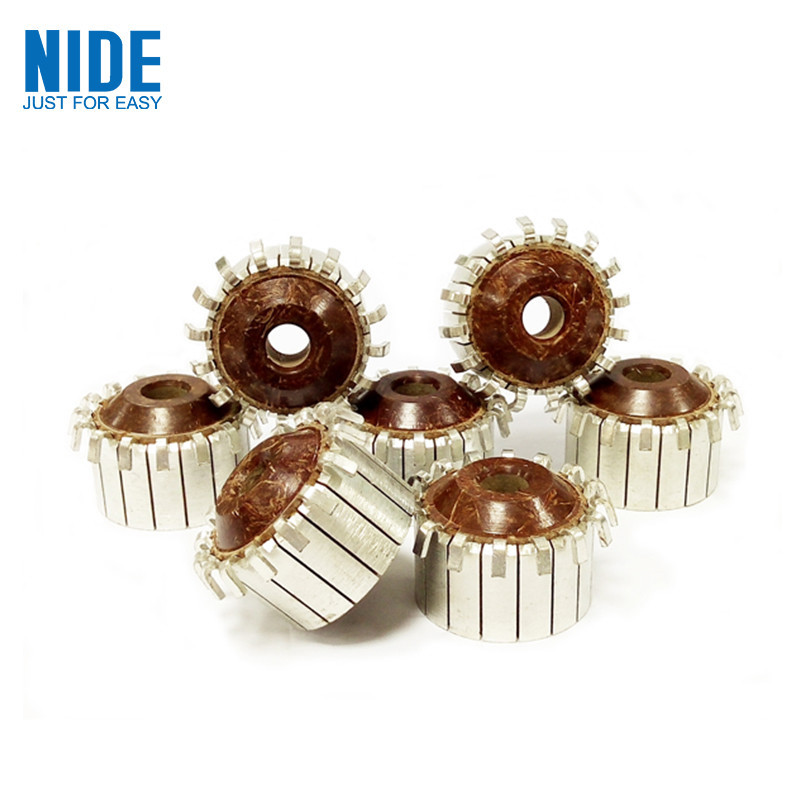

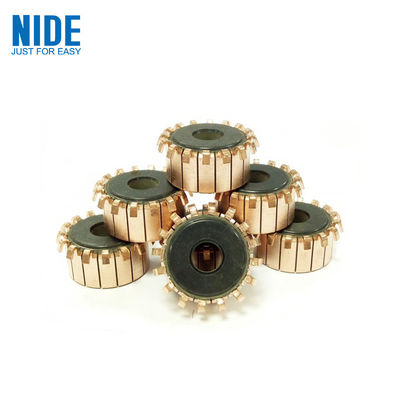

Customized 19 Segments Commutator Armature Slot Type For Motor

Customized 19 Segments Commutator Armature Slot Type For Motor

  • Customized 19 Segments Commutator Armature Slot Type For Motor
  • Customized 19 Segments Commutator Armature Slot Type For Motor
Customized 19 Segments Commutator Armature Slot Type For Motor
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-HXQ-03045
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description
Product Name: Commutator Size: Customers' Requirement
Application: Apply To Automotive Industry, And Other Motors. Type: Slot
OD: 35.5 ID: 15.75
Total Height: 23.5 Bar No: 19
Highlight:

Customized Armature Commutator

,

Electric Motor Spare Parts Armature Commutator

,

19 Segments Armature Commutator

Customized 19 Segments Slot Type Commutator Armature For Motor



Product name: Micro DC motor part commutator
OD 35.5
ID φ15.75
Total Height 23.5
Segment Length 20
Hook/Riser dia. 46
Bar No. 19



Description:

Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.


Competitive advantages:
1. We have a full experience of export.
2. We directly supply our products to many countries.
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.


Customized 19 Segments Commutator Armature Slot Type For Motor 0
Technical specification
1. resin surface, free of bubble and crack
2. spin test: 200ºC, 3000r/min, 3min, radial deviation <0.015, bar to bar <0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, >50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type





Materials 0.03% or 0.08% sliver copper or customized
Dimension Customized
Commutator type Hook type/Raiser type
Application apply to automotive industry, power tools, household appliances, and other motors
Package Suitable for land and sea transportation
Production capacity 1000000pcs/month



Customized 19 Segments Commutator Armature Slot Type For Motor 1

commutator

AC motor commutator

motor commutator

DC motor commutator

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

motor electric commutator



About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
