Customized Silver Copper Commutator Armature For Lift Dc Motor

Customized Silver Copper Commutator Armature For Lift Dc Motor

  • Customized Silver Copper Commutator Armature For Lift Dc Motor
  • Customized Silver Copper Commutator Armature For Lift Dc Motor
Customized Silver Copper Commutator Armature For Lift Dc Motor
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-HXQ-03033B
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description

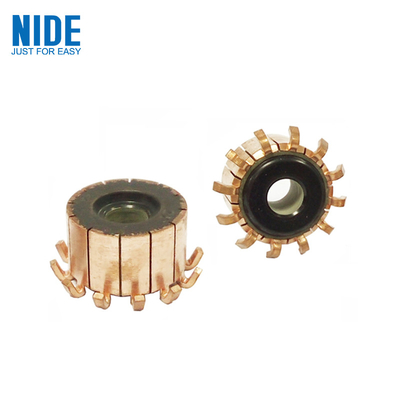

Product Name: Commutator Structure: Segmented Commutator
Used For: Electric Motor OD: 30
ID: 11 Total Height: 21
Bar No: 24 Segment Length: 18.5
High Light:

Silver Copper Commutator

,

Lift Dc Motor Copper Commutator

,

Customized Armature And Commutator

Customized Silver Copper Durable Armature For Electric For Klift Dc Motor

Customized Sliver Copper Durable Armature For Electric For klift Dc Motor



Description:

A commutator consists of a set of copper segments, fixed around the part of the circumference of the rotating machine, or the rotor, and a set of spring-loaded brushes fixed to the stationary frame of the machine. Two or more fixed brushes connect to the external circuit, either a source of current for a motor or a load for a generator.



Commutator segments are connected to the coils of the armature, with the number of coils (and commutator segments) depending on the speed and voltage of the machine. Large motors may have hundreds of segments. Each conducting segment of the commutator is insulated from adjacent segments. Mica was used on early machines and is still used on large machines. Many other insulating materials are used to insulate smaller machines; plastics allow quick manufacture of an insulator, for example. The segments are held onto the shaft using a dovetail shape on the edges or underside of each segment. Insulating wedges around the perimeter of each segment are pressed so that the commutator maintains its mechanical stability throughout its normal operating range.




Application
1. Commutator for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine , juicer, soymilk, and for other household appliances

2. commutator for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .

3. Commutator for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .

4. Commutator for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.


Technical specification
1. resin surface, free of bubble and crack
2. spin test: 200ºC, 3000r/min, 3min, radial deviation <0.015, bar to bar <0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, >50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type





Materials 0.03% or 0.08% sliver copper or customized
Dimension Customized
Commutator type Hook type/Raiser type
Application apply to automotive industry, power tools, household appliances, and other motors
Package Suitable for land and sea transportation
Production capacity 1000000pcs/month



Customized Silver Copper Commutator Armature For Lift Dc Motor 0



AC motor commutator

motor commutator

DC motor commutator

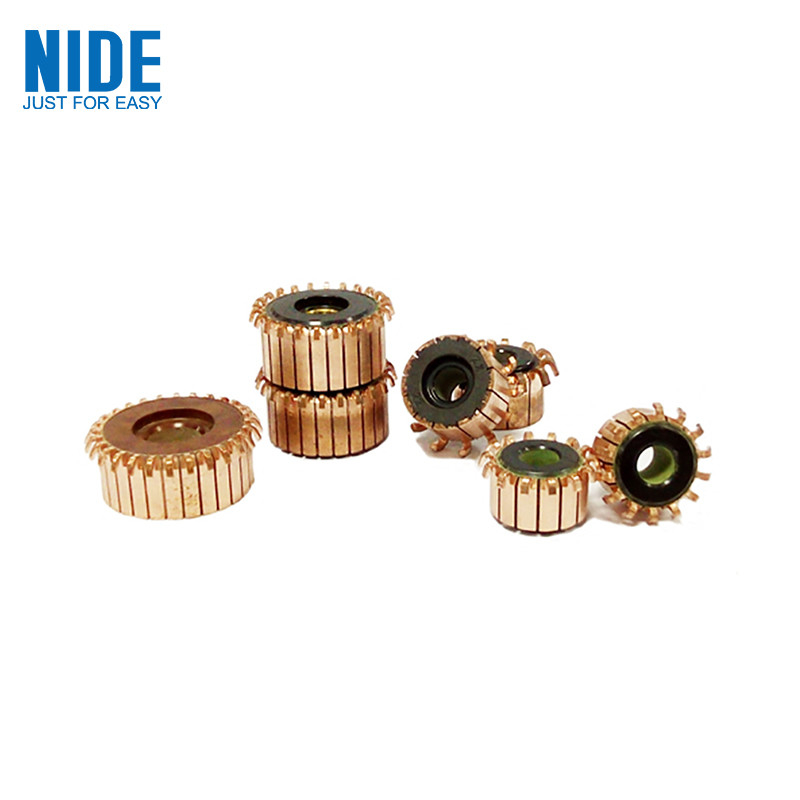

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
