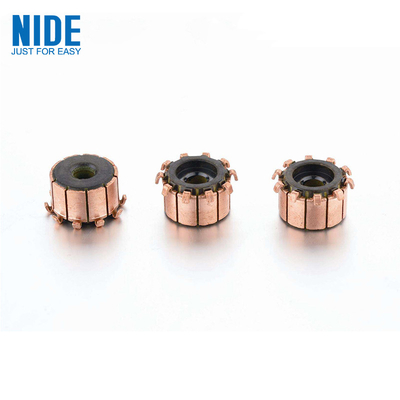

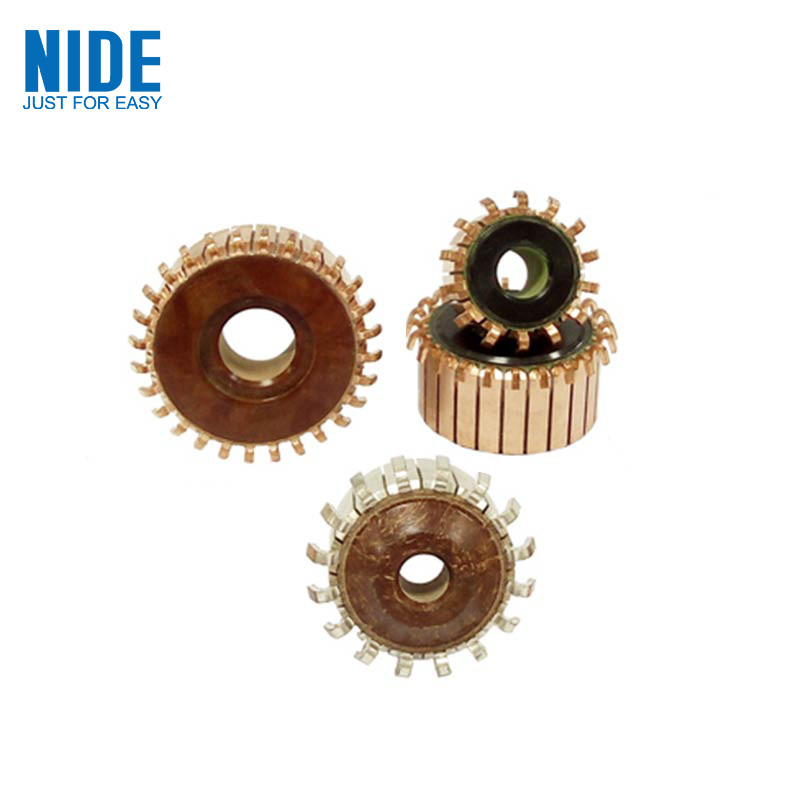

Segment Hook Commutator Use For Dc Motor Auto Part

Segment Hook Commutator Use For Dc Motor Auto Part

  • Segment Hook Commutator Use For Dc Motor Auto Part
  • Segment Hook Commutator Use For Dc Motor Auto Part
Segment Hook Commutator Use For Dc Motor Auto Part
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-HXQ-02001
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description
Product Name: Commutator Structure: Segmented Commutator
Used For: Electric Motor Type: Hook
OD: 37.5 ID: 13
Total Height: 24 Bar No.: 32
High Light:

Segment Hook Commutator

,

Commutator Electric Motor Spare Parts

,

Auto Part Segment Commutator

All Kinds Of Hight Quality Segment Hook Commutator Use For Dc Motor Auto Part

AC Motor Mica Commutator DC Motor Collector Segment Commutator for Electric Motor Armature



Description:
We can provide a variety of commutators motor commutator and slip ring , our products mainly used on motor armatures of all kinds of auto motors , power tools and home appliances, etc.Our company has been certified on ISO9001.We can customize according to customer needs, provide customers with high-quality products, competitive prices, and assured after-sales service.

Based on more then 10years experience in motor manufacturing and commutator manufacturing, we use advanced production equipment and special technique to supply you high quality products include plane type, hook type, step type commutator and slip ring.

Nide is specialized in researching, developing and manufacturing slot, hook and flat types of commutators for DC motors and universal motors. Snowballing the experience of production ever since its foundation, the company has been making great progress in integration worldwide advanced production process and scientific management skills, its annual production reaches upon ten million pieces, which are being exported to European, southeast Asian countries, Hong Kong and Taiwan, etc.




Application
1. Commutator for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine , juicer, soymilk, and for other household appliances

2. commutator for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .

3. Commutator for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .

4. Commutator for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.


Technical specification
1. resin surface, free of bubble and crack
2. spin test: 200ºC, 3000r/min, 3min, radial deviation <0.015, bar to bar <0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, >50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type





Materials 0.03% or 0.08% sliver copper or customized
Dimension Customized
Commutator type Hook type/Raiser type
Application apply to automotive industry, power tools, household appliances, and other motors
Package Suitable for land and sea transportation
Production capacity 1000000pcs/month



Segment Hook Commutator Use For Dc Motor Auto Part 0

commutator

AC motor commutator

motor commutator

DC motor commutator

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

motor electric commutator



About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
