|Place of Origin:||China|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Wooden case suitable for sea transportation|
|Delivery Time:||35 working days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||30 sets per month|
armature testing machine,
automatic test equipment

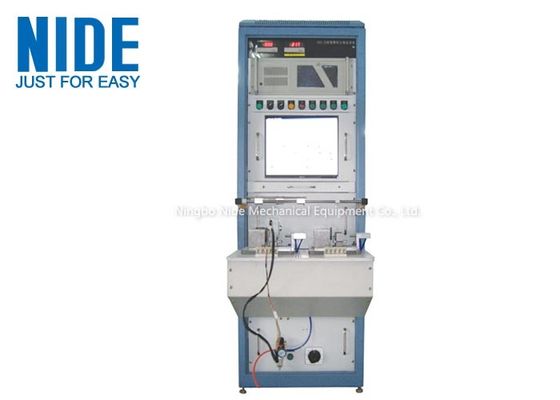

Fan , Mower Steel Casting Motor Testing Equipment With Bar Code Scan Function
1. Model No.: ND-QMT-2A
2. Machine can add bar code scan function as per customer requirement, input barcode when checking, the testing data will show on the screen.
3. Each test items could be on or off randomly.
4. Approval standard also could be set up randomly.
5. Single station/double station can be shosen, with high utility and testing efficiency.
This series of Motor Final Testing Panel is applied to test steel casting motor such as pump, fan, air-condition motor, mower, paper shredder and refrigerator etc. Its LCD shows all technical data which obtained by industrial control computer, which check and vertify the quality of testing stator.
1. All test items of electrical performance are done automatically at one time fast.
2. Each test items could be on or off randomly. Approval standard also could be set up randomly. Themachine will give acousto-optic alarm for rejuect motor.
3. Auto statistics the quantity and qualified rate, reject motor statistics classification.
4. Single station/double station can be shosen, with high utility and testing efficiency.
5. Withstand vlotage and between turns voltage can adjust by manual or automatic.
6. System switch part use imported high voltage vacuum steel spring tube relay, withstand vlotage 1000V, work test 100000000 times.
7. Customer can do item programming automatically as per testing requriement.
8. It can save, edit, call kinds model stator and check data specification automatically.
9. Machine can add bar code scan function as per customer requirement, input barcode when checking,the testing data will show on the screen.
This machine is applied to test steel casting motor such as pump, fan, air-condition motor, mower, paper shredder and refrigerator etc.
Motor testing machine
