AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine

AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine

  • AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine
  • AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine
  • AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine
  • AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine
  • AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine
AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: R2QL1-120-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 600 sets per year
Contact Now
Detailed Product Description
Weight: 4000Kg Power: 15Kw
Voltage: 380V50/60Hz Stator I.D: ≤φ110mm
Condition: New Pitch Time: ≤40s/pc
High Light:

motor stator winding machine

,

armature winding machine price

AC servo motor Stator Winding Inserting Machine , Coil Winding Machinery





Quick Detail:

1.This machine could dong coil winding and coil inserting automatically.
2.This machine is used for induction motor stator.
3. PLC and touch screen control.
4. Simple operation, low noise, fast speed and high automaticity.





Description:

This machine is can do coil winding, coil inserting and wedge inserting simultaneously. It has four working stations. Two of them do the coil winding process. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.The other two will do coil inserting and wedge inserting process.



This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen. With serval station working simultaneously, this machine is efficiency and saves labor cost.



AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine-1

Specifications :

Max stator O.D

≤φ150mm

Stator I.D

≤φ110mm

Stator stack length

30-120mm

Slot number range

8~48 slots

Appropriate Wire

0.18-φ1.2mm

Height of Coil 3

Appropriate wire

Copper wire/Aluminum wire

Winding inserting mode chained/same core
Pitch time ≤40s/pc

Voltage

380V50/60Hz

Power 15Kw

Air source

0.6-0.8MPa

Machine productivity

400pcs/ 8 hours

Machine Dimension

2000×(W)1300×(H)2300mm

Weight

≈4000Kg





Applications:

This simultaneous stator coil winding and coil inserting machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.





Machine running video links

https://www.youtube.com/watch?v=RPJ7FrmjZ8o





Competitive advantages:

Variety of application, easy operation.

We have Overseas Service Center.

Machine is controlled by PLC. All the parameter can be set in the touch screen.

It is suitable for stators with different model number and dimension.

The operation and tooling change process is easy.

We could customize machine for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

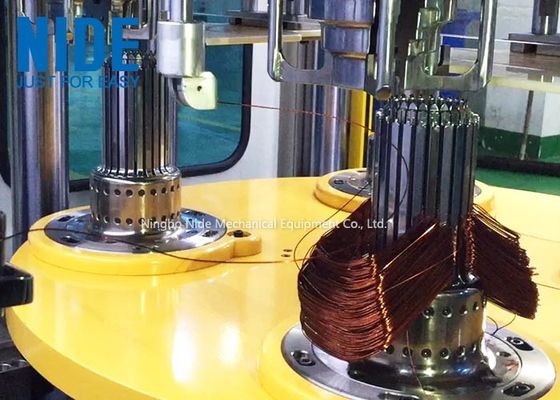

The working station of this Automatic Simultaneous Stator Coil Winding and Coil Inserting Machine



AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine 1

AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine-2
