Semi-auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine

Semi-auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine

  • Semi-auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine
  • Semi-auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine
Semi-auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: QB1-150/160
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Condition: New Control Method: :PLC
Stator ID: 20~110mm Tooling Travel: :60mm
Weight: 400Kg After-Sales Service: Overseas Service Center Available
High Light:

automatic winding machine

,

armature winding machine price

Auto Washing Machine Motor Stator Coil Winding And Wedge Inserting Machine





Quick Detail:

1. Automatically insert the stator coil into stator slot.
2. Simple operation, low noise, fast speed and high automaticity.
3.The winding/coil and wedge/top cover is inserted simultaneously.
4. Wide application
5. PLC and touch screen control.



Discription:

This machine is used to inserting coil and wedge into stator. And it can insert coil and wedge simultaneously. This HMI can set all the necessary data. With easy and convenient tooling change process, this machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.



Technical parameter:

  • Stator ID: 20~110mm

  • Stator OD: ≤160mm

  • Stator height: 20~150mm

  • Tooling travel: 60mm

  • Working station: single

  • Control method: PLC

  • Wire Material: Copper wire/Alum wire

  • Slot number range: 8-48 slots

  • Power supply: 380V/ 50/60Hz

  • Power: 3Kw

  • Weight: 400Kg

  • Dimension: 1500*680*1500mm

 Application:

This machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.



Operation step

  • Power on the machine
  • Insert the wire by winding form
  • Adjust the tooling according to different model stator
  • Put stator to the tooling
  • Set the stator diameter in the touch screen then select the pre-set data.
  • Press "start" button.
  •  Machine will automatically do coil inserting.
  • Take out the stator

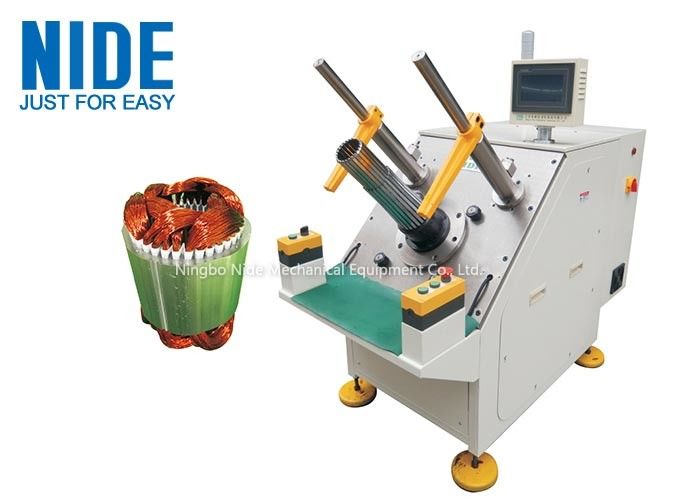

Stator made by this coil winding and wedge inserting machine
