Single Phase , Three Phase AC DC Motor Performance Testing Panel With LCD

Single Phase , Three Phase AC DC Motor Performance Testing Panel With LCD

  • Single Phase , Three Phase AC DC Motor Performance Testing Panel With LCD
Single Phase , Three Phase AC DC Motor Performance Testing Panel With LCD
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: ND-MP-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
High Light:

armature testing machine

,

automatic test equipment

Single Phase , Three Phase AC DC Motor Performance Testing Panel With LCD



Quick Detail:

1. This testing panel is applied to  type test of every kinds of single phase,three phases AC and DC motor.
2. All the testing data can be saved and printed.
3. This machine is easy to operate.
4. The measuring range of voltage and current could be free exchange.

Description:

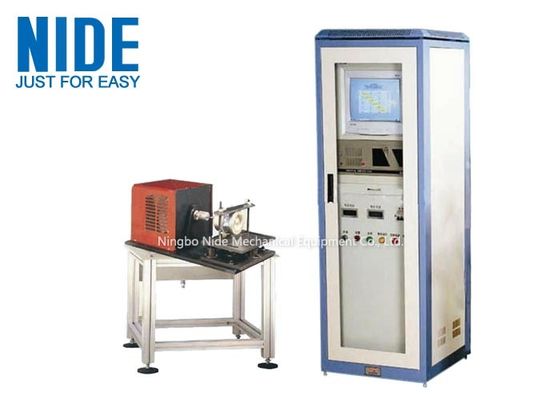

This series of Motor Performance Testing Panel is applied to type test of every kinds of single phase ,three phases AC and DC motor.  Its LCD shows all technical data which obtained by industrial control computer, printed out by printer in graphic and report (test items difference appear in the different types motor).

Technical parameter:

Test item

Test standard

Motor rotation speed

Range: 0~30000 revolutions

Input voltage

AC motor: 0~250VAC

Phase motor: 0~400VAC

DC motor:

Input torque

Range: 0~200N.m

Select dynamometer as per different torque

Input current

Range: 0~100A

Input power

Range: U*IcosΦ

Power factor

Range: 0~1.00

Motor efficiency

Range: 0~100%



Main property

5 windows display the rotation speed, torque, output efficiency at the same time. The last window indicates field current

The field current of dynamometer adjustment could be done by rotary button of field current in front panel (say test motor loading).

It has interfaces to printer and computer

Via RS-232 interface, receive voltage, current, power, power factor and frequency of electric testing instrument.

Adjustment in manual/automatic

Convenient operation, fast test

Voltage, current, power, power factor and frequency could be displayed in LED figures at the same time.

The measuring range of voltage and current could be free exchange. Wide linear range, well repeated data read and stable performance.

Convenient lock ensures to measure data simultaneously and benefit for easy operation.

Computer could fix the torque and RPM of certain point, the machine could operate stably.



Test jig:

Single working station.
Test jig is designed according to motor samples.

Power:
Single phase 50Hz/220V+/-5%, 1KVA

Dimension:
Electric cabinet: 600(W)*600(L)*1800(H) mm including movable wheel
Working table: 800(L)*400(W)*750(H)mm

Other standard description:
1. Save 900 models motor automatically.
2. Main machine is P4 industrial control computer, 19'' LCD.
3. Attached software:
(1) Loading test program
(2) Test program of temperature rise up
(3) Statistics analysis and displaying program
(4) Printing program of report and graphic
(5) Testing data serach program
