| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | ND-CW001 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 sets per year |
| Type: | Middle | Used For: | Commutator Hook Welding |
|---|---|---|---|
| Condition: | New | Color: | Customized |
| Commutator Diameter: | Max 60mm | ||
| Highlight: | armature coil winding machine,fusing machine |
||

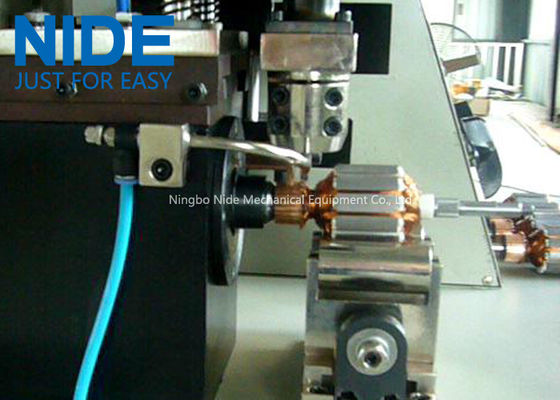

Modular And Precise Armature Commutator Hook Welding and Fusing Machine
Quick Detail:
Description:
This type of Commutator hot staking machine is used for commutator hook welding. It is automatically indexing, automatically welding,you only need to load and unload the armature. Welding current can be adjusted according to different wire diameter. Easy operation and adjustment.
If your armature is beyond the range of our standard machine capacitiy, we could modify our machine according to your armature dimension.
Technical parameter:
|
Armature diameter |
15~100mm |
|
Commutator diameter |
5~60mm |
|
Wire diameter |
0.07~1.8mm |
|
Max power |
25KVA |
|
Power supply voltage |
220V±10%50Hz |
|
Air source pressure |
0.5~0.7MP |
Competitive advantages:
The Modular And Precise Armature Commutator Hook Welding and Fusing Machine is suitable for both hook and riser type commutator. It can be used for different armatures by changing tooling. Easy operation and adjustment.
