Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-HXQ-203 |
Minimum Order Quantity: | 10000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000000 pcs per month |

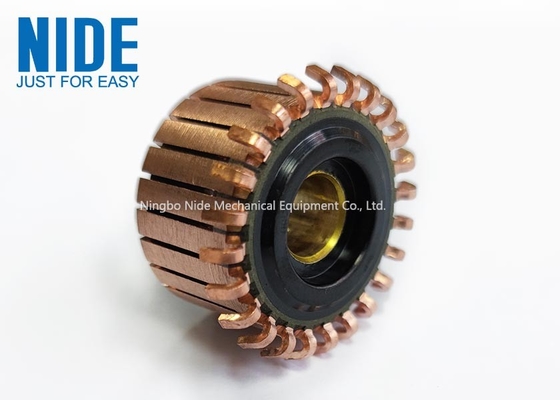

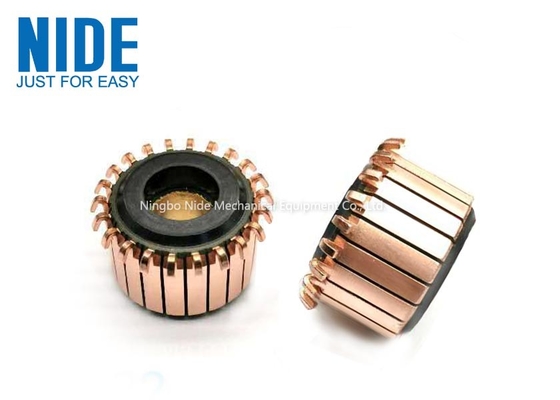

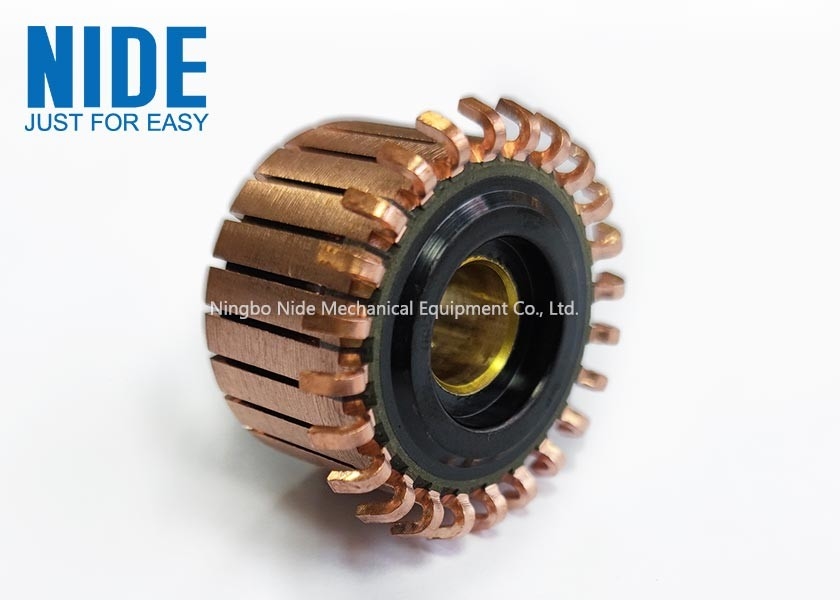

Product Name: | Automotive Car Wiper Lifter Commutator | Structure: | Hook Commutator |
---|---|---|---|
Used For: | DC Motor | Material: | Silver Copper 0.3 ‰-0.8% |
Size: | Customized Size | Service: | Commutator Customized OEM/OBM/ODM |
Highlight: | electronic dc motor brushes and commutator,auto dc motor brushes and commutator,window lift commutator motor dc |
Window lift motor commutator auto electronic accessories
The Hook Commutator products are mainly used in low-power motors and micro-special motors, and are used in fuel vehicles, new energy vehicles, automobile generators, gasoline generators and other fields. The commutator plays a role of rectification, and its role is to make the direction of the current in the armature winding alternate to ensure that the direction of the electromagnetic torque remains unchanged.
The number of micro-motors used in automobiles is related to the grade of automobiles. For example, low-end and medium-end models use at least 20-30 motor commutators, while mid- and high-end models need to use 60-70 or even hundreds of motor commutators. Device. There are more and more applications of commutators in automobile production.
The motor commutators are mainly used in window lifts, wipers, sunroofs, automatic trunk opening and closing, seat adjustment, rearview mirror adjustment, ABS, EPS and other scenes.
Product Name : | Auto Electronic Commutator Accessories |
Color: | Copper Tone |
Material: | Copper, Steel |
Size: | customized |
Gear Tooth Quantity: | 24 Pcs Or customized |
MOQ: | 5000 pcs |
Delivery: | 20-50working days |
Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
If possible, it will better if customer could send us samples.
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
