| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-HXQ-177 |
| Minimum Order Quantity: | 10000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 pcs per month |
| Product Name: | Electric Power Tool Commutator | Structure: | Hook Commutator |
|---|---|---|---|
| Used For: | Electric Power Tool Motor | Service: | OEM/ODM/OBM |
| Size: | Customized Size | Tolerance: | +/-0.02~0.1mm |
| High Light: | hook commutator for dc motor,hook brushed motor commutator,OEM Commutator For Dc Motor |
||

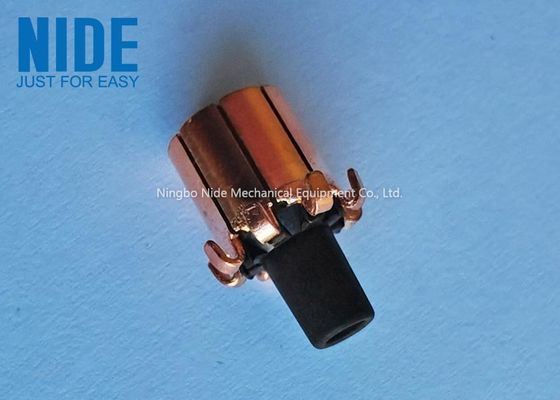

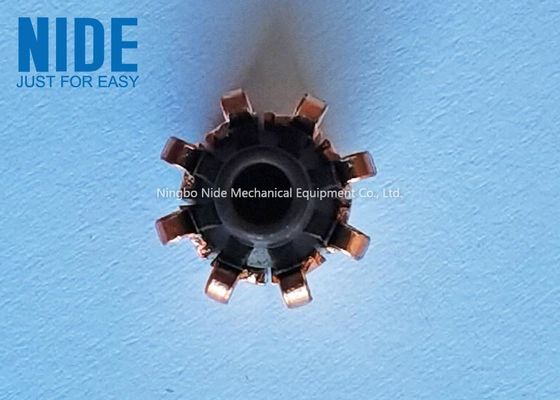

DC motor 365 Mini electric power tool hook commutator
NIDE is specializing in the production of miniature and DC commutators, the product specifications are n20, n60, 280, 370, 365, 380, 550, 555, as well as various commutators on series motors, and can also be customized according to customer needs.
This kind of micro motor commutator is a kind of micro motor commutator with long service life. The center of this commutator has a spindle through hole. The commutator is divided into large diameter section, middle diameter section and small diameter section. Several commutator segments are fixed on the segment, and insulating parts are arranged between the commutator segments. The surface of the commutator segments is provided with a tungsten and molybdenum anti-oxidation coating, which is suitable for the interior of general micro motors and used as motor commutators.
Mini Commutator Parameter
| Model | Outer Diameter | Inner Hole | Slot Width | Hook Foot Length | Slot Number | Copper Height | Total Height |
| 365 | 5.6 | 2.3 | 0.35 | 1.6 | 5 | 7.5 | 12 |
| 365 | 5.6 | 2.3 | 0.4 | 2 | 5 | 8 | 12 |
| 385 | 5.6 | 2.3 | 0.4 | 1.6 | 5 | 7.5 | 11.4 |
| 380 | 5.6 | 2.3 | 0.4 | 2.5 | 3 | 8 | 12 |
| 380 | 5.6 | 2.3 | 0.4 | 2 | 3 | 8 | 11.4 |
| 555 | 7.6 | 3.175 | 0.45 | 2.5 | 5 | 10.5 | 17.3 |
| 545 | 7.6 | 3.175 | 0.45 | 2 | 5 | 10.5 | 13.5 |
| 550 | 7.6 | 3.175 | 0.45 | 3.5 | 3 | 11.5 | 16.8 |
| 280 | 4.2 | 2 | 0.3 | 2 | 3 | 6 | 10 |
| 775 | 10 | 5 | 0.5 | 3.5 | 5 | 14 | 22.5 |

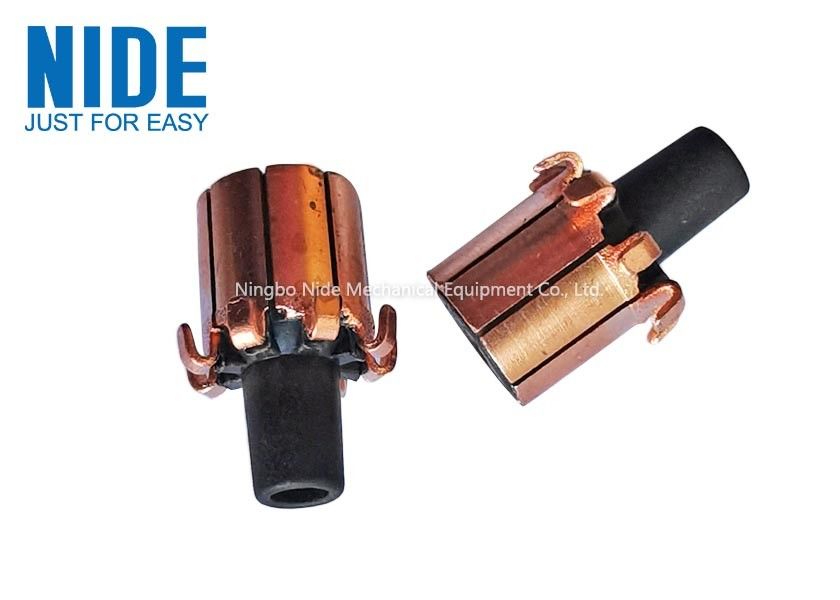

Picture show
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
