| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-HXQ-172 |
| Minimum Order Quantity: | 10000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 pcs per month |
| Product Name: | Starter Motor Commutator | Structure: | Segmented Commutator |
|---|---|---|---|
| Used For: | Automobile Car Motor | Type: | 48 Segmented |
| High Light: | car starter motor commutator,48 segmented starter motor commutator,commutator in starter motor |
||

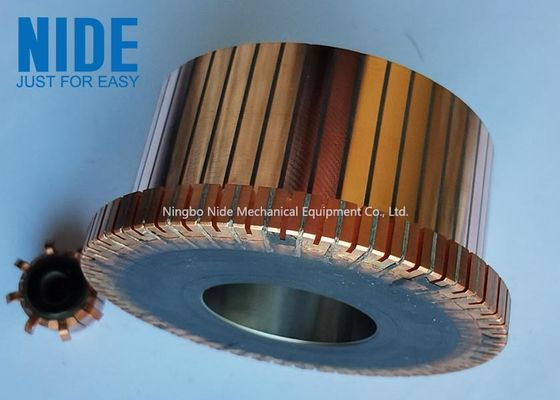

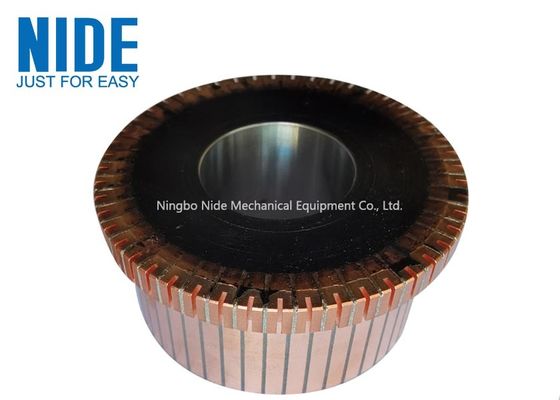

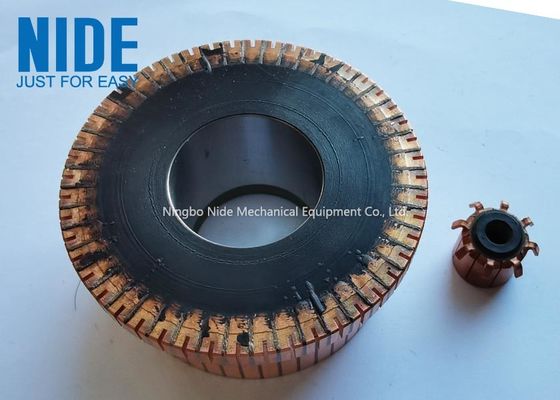

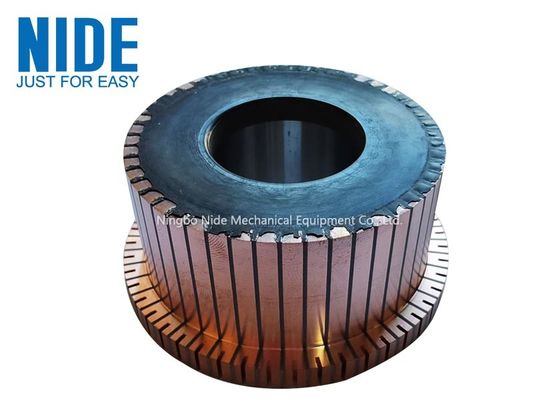

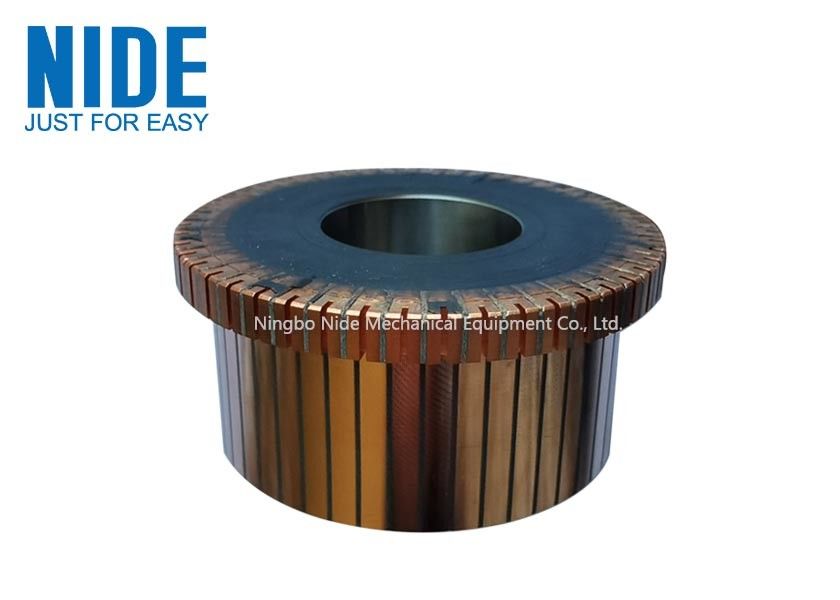

48 segmented car starter commutator motor components collector
Description:
Product name: car starter motor commutator
Material of commutator: silver and copper, customized
Segmented: 48 or customized
Size of commutator: Customized
MOQ of commutator: 10000pcs
Type Of Motor: Starter motor
Application:
Our commutators are widely used for motors of automobiles, such as starter motor, wiper motor, fuel pump motor, cooling fan motor, blower motor, seat motor, fan motor, traction motor; home appliances like vacuum cleaner, air-conditioning, blender, juicer, washer and mixer, power tools like marble cutter motor, power drill, power hammer, electric saw, hand grinder, and industrial uses.
Some parameters
| Part No. | Bar No. | O.D(D) | I.D(d) | Bar Length(L1) | Total Length(L) | Hook Height(D1) |
| NDB293 | 19 | 30.2 | 10 | 26.9 | 33.9 | 42 |
| NDG907 | 21 | 28.3 | 12.2 | 18 | 22 | 28.3 |
| NDB998 | 21 | 39.5 | 15.57 | 39.5 | 42.5 | 44 |
| NDB998 | 21 | 39.5 | 15.57 | 39.5 | 42.5 | 44 |
| NDB232 | 21 | 44.1 | 12.97 | 56 | 59 | 44.65 |
| NDGS810 | 23 | 27.6 | 7.96 | 24.9 | 27.9 | 39.8 |
| NDB256 | 23 | 39.2 | 15.5 | 39.5 | 43 | 44 |
Picture show
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Contact Person: Herbert
Tel: +8615268395840
