Product Name: | Commutator | Structure: | Segmented Commutator |
---|---|---|---|
Used For: | Electric Motor | Type: | Hook Type |
Name: | Electric Motor Spare Parts | Model: | NDPJ-HXQ-16 |
High Light: | alternator electric motor spare parts,electric motor collector commutator,Hook motor collector commutator |
Alternator motor collector commutator, vacuum cleaner motor 24 segments hook type armature commutator
Competitive advantages
1. We have a full experience of motor commutator export.
2. We directly supply our products to many countries, like USA, France, Turkey, India, Brazil, Argentina, Mexico etc.
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
We produce more than 1200 different type of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm, which widely apply to automotive industry, power tools, household appliances, and other motors, we should be highly appreciated if any specified inquiry from you, and sincerely wish there is a chance to be of service.
Commutator parameters
Materials | 0.03% or 0.08% sliver copper or customized |
Dimension | Customized |
Commutator type | Hook type/Raiser type |
Application | apply to automotive industry, power tools, household appliances, and other motors |
Package | Suitable for land and sea transportation |
Production capacity | 1000000pcs/month |
Model No. | OD (mm) |
ID(mm) | Total height (mm) |
Segment Length (mm) |
Hook/Riser dia. (mm) |
Bar No. |
S-02001 | 37.5 | φ13 | 24 | 20.5 | 38.5 | 32 |
S-03002 | 15.75 | φ13 | 11.25 | 9.5 | 16 | 24 |
S-03003 | 24 | φ9 | 17 | 14 | 25 | 24 |
S-03003B | 24.5 | φ10 | 17.5 | 14 | 25.5 | 24 |
S-03003C | 24.5 | φ10 | 17.5 | 14 | 25.5 | 24 |
S-02004 | 24 | φ9 | 15 | 13 | 24.5 | 24 |
S-03004A | 23.2 | φ9 | 15 | 13 | 24 | 24 |
S-03005 | 24 | φ9 | 17 | 14 | 25 | 24 |
S-03005A | 24 | φ9 | 17 | 14 | 25 | 24 |
S-03006 | 37.5 | φ13 | 26 | 23 | 38.5 | 32 |
S-03007 | 25.5 | φ10 | 17 | 14 | 26.5 | 24 |
S-03007B | 25.5 | φ10 | 17 | 14 | 26.5 | 24 |
S-03008 | 23.5 | φ9 | 14 | 12 | 24 | 24 |
S-03009 | 24 | φ9 | 16.6 | 14 | 29 | 24 |
DZQD-RZ32-010 | 28.5 | φ12 | 17.5 | 16 | 34.3 | 24 |
S-03011 | 23.5 | φ9 | 17.5 | 14 | 28 | 24 |
DZQD-RZ32-012 | 23.5 | φ10 | 18 | 16.4 | 28.5 | 24 |
S-03013 | 23 | φ8 | 16 | 14 | 23.5 | 24 |
S-03014 | 28.5 | φ11 | 20 | 17 | 29.5 | 24 |
S-03015 | 22.5 | φ9 | 17.5 | 17.2 | 30 | 10 |
S-03016 | 28 | φ14 | 20 | 19.2 | 36.8 | 12 |
S-03016A | 28 | φ14.2 | 20 | 19.2 | 36.8 | 12 |
S-03017 | 28.5 | φ9 | 17.5 | 15 | 29.5 | 24 |
S-03018 | 34.3 | φ13 | 22 | 20.5 | 41.5 | 24 |
S-03019 | 24.5 | φ10 | 17.5 | 14 | 25.5 | 24 |
S-03019A | 24.5 | φ10 | 17.5 | 14 | 25.5 | 24 |
S-03020 | 28.5 | φ11 | 17 | 14 | 29.5 | 24 |
S-03021 | 20.5 | φ10 | 18 | 13.5 | 30.5 | 12 |
QZQC-RZ12-022 | 20.5 | φ10 | 17.8 | 13.5 | 26 | 12 |
S-03024 | 40.4 | φ13 | 24 | 20 | 42 | 50 |
S-03025 | 23.2 | φ8 | 17.5 | 17 | 30 | 12 |
QZQC-RZ32-026 | 20.2 | φ8 | 14.6 | 14.1 | 25 | 16 |
QZQC-RZ32-026A | 20.2 | φ8 | 14.6 | 14.1 | 25.5 | 16 |
QZQC-RZ12-027 | 18.9 | φ8 | 14.5 | 12.8 | 24 | 12 |
S-03028 | 15.5 | φ7 | 11.4 | 11.7 | 20 | 9 |
S-03030 | 22.5 | φ9.2 | 18 | 17.7 | 30.6 | 10 |
S-03031 | 22.5 | φ12 | 21 | 20.5 | 30.5 | 10 |
S-03032 | 28.5 | φ12 | 17.5 | 14.5 | 29.5 | 24 |
S-03033 | 30 | φ10 | 20 | 17 | 35.5 | 24 |
S-03033A | 30 | φ11 | 21 | 18 | 36 | 24 |
S-03033B | 30 | φ11 | 21 | 18.5 | 36 | 24 |
S-03033C | 30 | φ11 | 21 | 18.5 | 36 | 24 |
JZQC-RZ32-037 | 22 | φ8 | 16 | 14.2 | 27 | 16 |
S-03038 | 35.4 | φ14 | 42.5 | 38 | 48 | 23 |
S-03038A | 35.4 | φ14 | 42.5 | 38 | 48 | 23 |
S-03044 | 22.5 | φ10 | 17.5 | 17 | 28.5 | 10 |
S-03045 | 35.5 | φ15.75 | 23.5 | 20 | 46 | 19 |
S-03046A | 37.5 | φ14 | 42 | 38 | 49.5 | 23 |
S-03046B | 37.5 | φ14 | 42 | 38 | 49.5 | 23 |
S-03047 | 45 | φ15.5 | 50 | 44.4 | 62 | 21 |
S-03048 | 34 | φ10.2 | 38.5 | 34.5 | 46.5 | 23 |
S-03050 | 15 | φ5 | 16.5 | 15.5 | 20 | 12 |

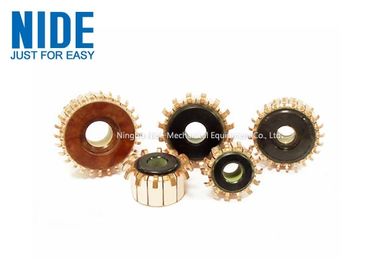

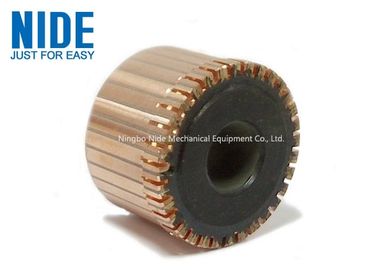

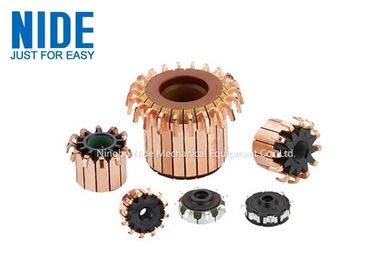

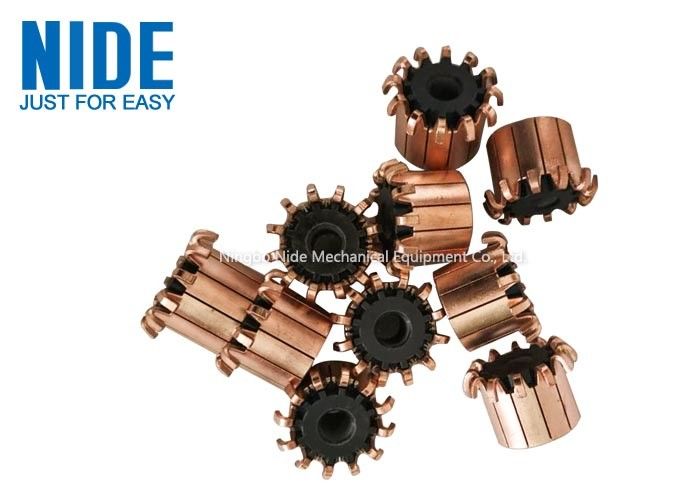

Commutator picture
Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
If possible, it will better if customer could send us samples.
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Contact Person: Herbert
Tel: +8615268395840
