Durable Hook Type Commutator Segment 18 Customized Size For Juicer Blender

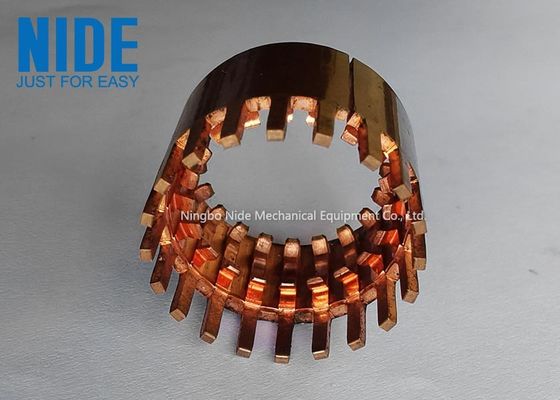

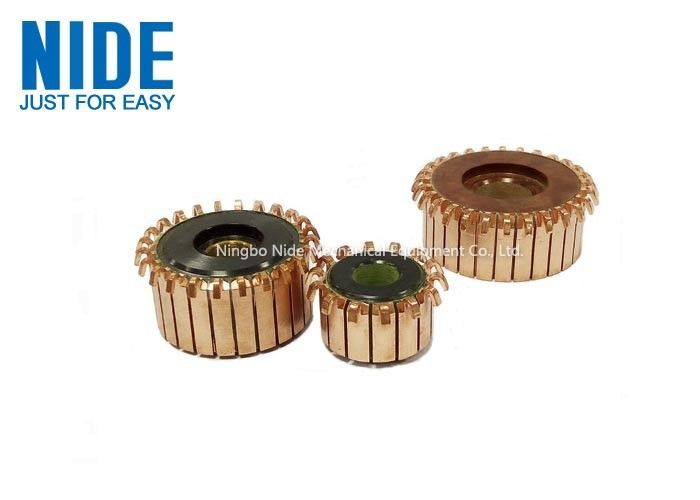

Motor commutator 18 segments hook type commutator for Juicer blender

Our commutator is widely applied the different industrials.
1) The commutators for power tools: electro motors, grinding machines, drilling machines, hammers, electrical planer ect.
2) Commutators for household appliances: air conditioning, or other household appliances.
3) Commutators for automotive industry: windscreen wipers, fan window lifts, ABS baking systems, etc.


Technical parameter
1. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.
2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.
3. Insulation resistance: 500V, more than 50MΩ

Technical specification:

Note:

The voltage with standing tests data between the shaft and the segment of commutator and between the segments depend in the different users of the motor to complete and the users’ requirement.

Negotiation may be taken if users have other special requirements to the above data in the table.

Competitive advantages

1. Sliver copper with high intension and wear resistance

2. Long duration time

3. Wide range of commutator

4. Wide application of commutator

5. Good quality

6. Produce commutator as per customer’s drawing.

Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.

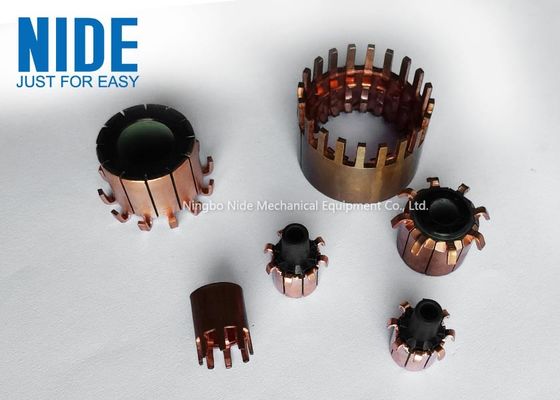

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
