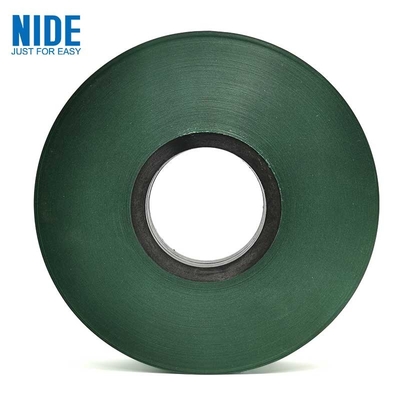

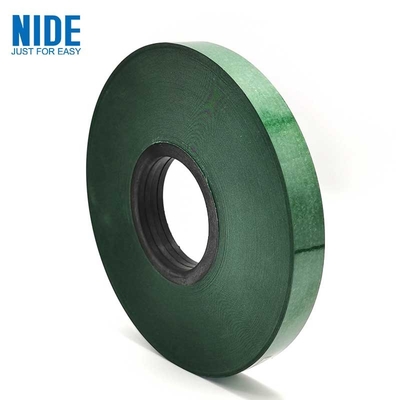

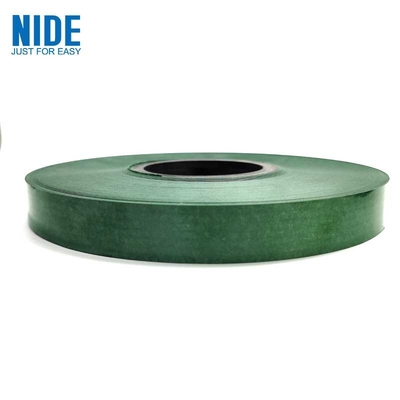

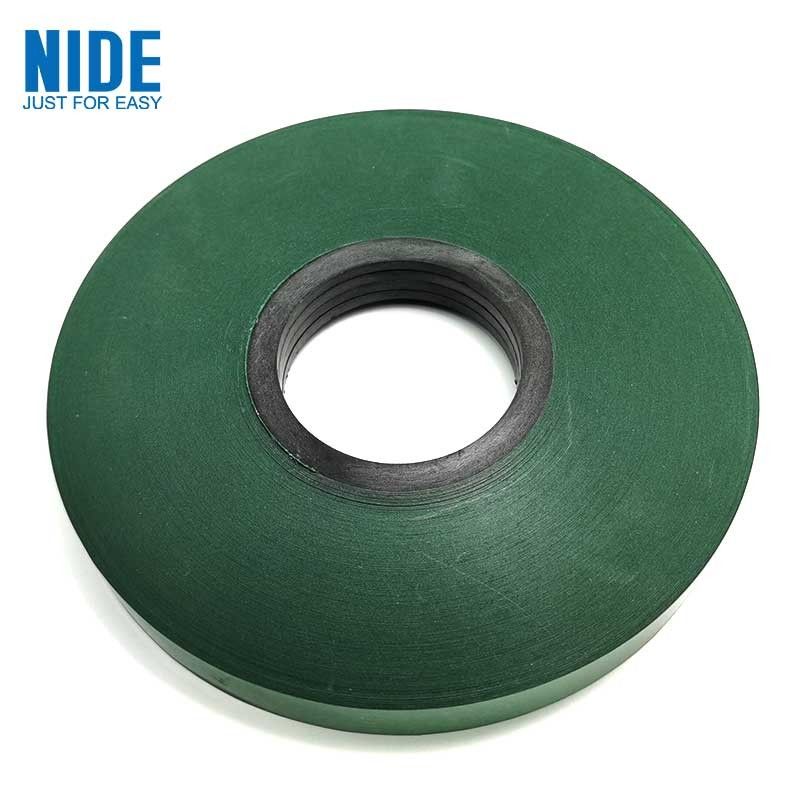

High Voltage Electric Motor Spare Parts Flexible 6520 Class E Composite Insulation Fish Paper

High Voltage Electric Motor Spare Parts Flexible 6520 Class E Composite Insulation Fish Paper

  • High Voltage Electric Motor Spare Parts Flexible 6520 Class E Composite Insulation Fish Paper
High Voltage Electric Motor Spare Parts Flexible 6520 Class E Composite Insulation Fish Paper
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-6520
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: Electrical Insulation Paper Material Color: Customized
Used For: Motor Winding Type: Motor Insulation Paper
Name: Electric Motor Spare Parts Model: NDPJ-JYZ-6520
High Light:

electric motor parts

,

electric motor components

High voltage electrical Insulation Materials Flexible 6520 Class E composite Insulation Fish Paper





This 6520 insulation paper widely used for slot insulation,gasket insulation and inter insulation for electrical machinery and appliances. It is made of both green electric kraft paper and polyester film adhered together by heating adhesive. It has good mechanical strength, high electrical strength, smooth surface and toughness.



6520 insulation paper is a two-layer composite material made of one layer of polyester film and one electrical insulation paper and glued by B class resin. It shows excellent dielectric property. it is widely used in slot, phase and liner insulating of samll motor, low-voltage apparatus, transformer and so on.

Thickness 0.13mm-0.40mm
Width 5mm-1000mm
Thermal class E
Working temperature 120 degree
Color Cyan




Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
