DMD Motor Insulation Paper Polymer Flex Paper For Motor Winding Insulation

DMD Motor Insulation Paper Polymer Flex Paper For Motor Winding Insulation

  • DMD Motor Insulation Paper Polymer Flex Paper For Motor Winding Insulation
  • DMD Motor Insulation Paper Polymer Flex Paper For Motor Winding Insulation
DMD Motor Insulation Paper Polymer Flex Paper For Motor Winding Insulation
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-11
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: Electrical Insulation Material Color: Customized
Used For: Motor Winding Type: Motor Insulation Paper
Highlight:

electric motor parts

,

electric motor components

Nide team could manufacture insulation material as per customer’s drawing and samples.

If customer only has samples, we could also design drawing for our customer.

We also provide customized service.



Nide pays high attention on production detail and process to guarantee the insulation material quality.





Introduction and features

DMD is made of two layers of polyester fiber paper with one of polyester film.

It is a three-layer combined material.

It shows excellent mechanical and electrical properties and good heat resistance.

Surface should be bright and clean, no small holes, delaminating, mechanical impurity or damage.

Drape or bubble is permitted under the allowable thickness tolerances. After opening, the surface should not stick.





Technical requirement

Thickness: 0.15~0.4mm
Width: 5mm~1000mm
Thermal class: Class B
Color: White





Application:

The insulation paper is widely used in slot, phase and liner insulating of motor, transformer and so on.

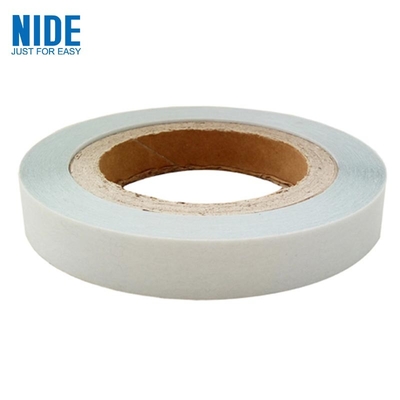

DMD Motor Insulation Paper Polymer Flex Paper For Motor Winding Insulation 0

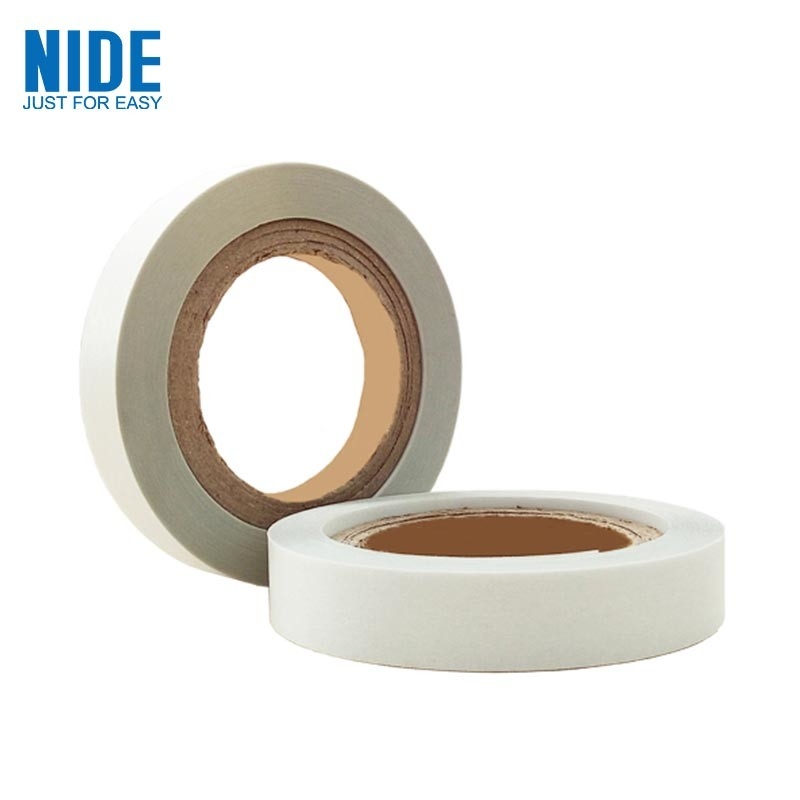

DMD Motor Insulation Paper Polymer Flex Paper For Motor Winding Insulation 1



Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
