Product Name: | Commutator | Structure: | Segmented Commutator |
---|---|---|---|
Used For: | Electric Motor | Type: | Hook |
Highlight: | electric motor parts,electric motor components |

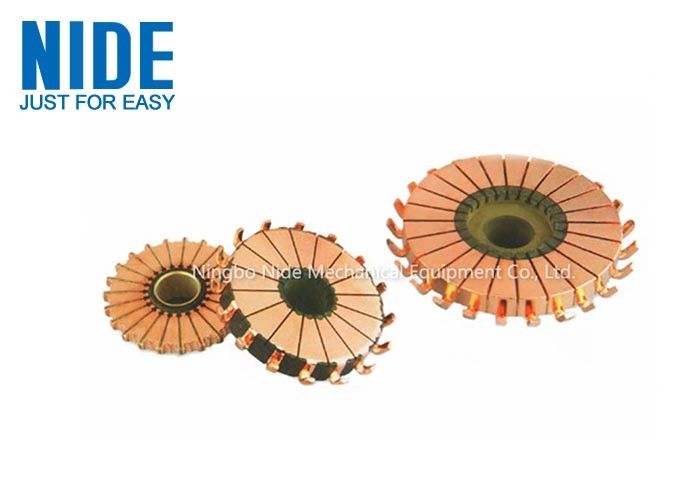

Nide commutator covers a wide range, more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.
Technical requirement of commutator:
1. Voltage test: bar to bar at 500V, 1s, bar to bore at 1500V, 1 min, without breakdown or flashing.
2. Spin test: do spin test for the commutator under 140 centigrade, 5000RPM, 3min. After testing, the max deviation of outer diameter is 0.015, that of bar and bar is 0.005.
3. Insulation resistance: 500V, more than 50MΩ
4. Free from bubble, cracks, or burr in the surface.
Competitive advantages
1. Sliver copper with high intension and wear resistance
2. Long duration time
3. Wide range of commutator
4. Wide application of commutator
5. Good quality
6. Produce commutator as per customer’s drawing.
Part No. | O.D (D) | I.D (d) | Total O D (D1) | Bar No(N) | Bar length (L1) | Total length (L) |
JZQE-RS12-148 | 63 | 13.2 | 73 | 24 | 16 | 26.5 |
JZQE-RS12-148B | 63 | 20 | 73 | 24 | 16 | 26.5 |
JZQE-RS12-148C | 63 | 13.2 | 73 | 24 | 16 | 26.5 |
JZQE-RS12-149 | 40 | 15 | 43 | 43 | 10 | 18.2 |
JZQE-RS31-150 | 44 | 12.08 | 23 | 10 | 12.5 | |
JZQE-RS31-150B | 44 | 12.35 | 23 | 10 | 12.5 | |
JZQE-RS31-150C | 44 | 12.06 | 23 | 10 | 12.5 | |
JZQE-RS31-150D | 44.2 | 12.08 | 23 | 10 | 12.5 | |
JZQE-RS31-150E | 44 | 12 | 23 | 10 | 12.5 | |
JZQE-RS12-151 | 47.6 | 13.2 | 57 | 16 | 14 | 24.5 |
JZQE-RS12-151B | 47.6 | 13.2 | 57 | 16 | 14 | 22 |
JZQE-RS12-151C | 47.6 | 13 | 57 | 16 | 14 | 24.5 |
JZQE-RS12-151D | 47.6 | 13 | 57 | 16 | 14 | 22 |
JZQE-RS12-151E | 47.6 | 13.4 | 57 | 16 | 14 | 24.5 |
JZQE-RS31-169 | 38 | 12.08 | 26 | 10 | 14.3 | |
JZQE-RS12-193 | 74 | 33 | 85 | 81 | 12 | 12 |
JZQE-RS12-247 | 19.5 | 4 | 7 | 3 | 5.5 | |
JZQE-RS12-326 | 49 | 13.2 | 16 | 14 | 15 | |
JZQE-RS32-348 | 58 | 24.1 | 25 | |||
JZQE-RS32-464 | 20.5 | 5 | 25 | 8 | 5.7 | 8.5 |
JZQE-RS32-464B | 20.5 | 5 | 24.7 | 8 | 5.7 | 8.5 |
JZQE-RS32-464C | 20.5 | 5 | 24.7 | 8 | 5.7 | 8.5 |
JZQE-RS32-464D | 20.5 | 5 | 25 | 8 | 5.7 | 8.5 |
JZQE-RS32-464E | 20.5 | 5 | 25 | 8 | 5.7 | 8.5 |
JZQE-RS12-480 | 78 | 23 | 25 | 13 | 23 | |
JZQE-RS32-508 | 20.5 | 3.175 | 25 | 8 | 4.2 | 8.5 |
JZQE-RS31-525 | 44.2 | 12.08 | 23 | 10 | 13 | |
JZQE-RS31-525B | 44.2 | 12.35 | 23 | 10 | 13 | |
JZQE-RS31-525C | 44.2 | 12 | 23 | 10 | 13 | |
JZQE-RS32-555 | 20.5 | 3 | 24.7 | 8 | 5.7 | 8.6 |
JZQE-RS12-593 | 71.5 | 13.2 | 64 | 24 | 28 | 32.5 |
JZQE-RS11-608 | 52.5 | 16 | 19 | 6.5 | 16 | |
JZQE-RS11-608B | 52.5 | 16 | 19 | 6.5 | 16 | |
JZQE-RS32-618 | 23 | 4 | 28.5 | 10 | 6.5 | 10 |
JZQE-RS32-618B | 22.5 | 4 | 28 | 10 | 6.5 | 10 |
JZQE-RS32-651 | 47.6 | 13 | 56.5 | 16 | 12.5 | 18.5 |
JZQE-RS32-664 | 48 | 13.4 | 57.5 | 16 | 12.5 | 24.5 |
JZQE-RS12-688 | 59 | 24.1 | 58 | 25 | 34.9 | 22 |
JZQE-RS12-689 | 59 | 24.1 | 58 | 25 | 34.9 | 19.5 |
JZQE-RS32-717 | 47.6 | 13.3 | 56.5 | 16 | 12 | 24.77 |
JZQE-RS32-739 | 44.2 | 13.8 | 23 | 10 | 13 | |
JZQA-RS12-752 | 31 | 11.5 | 40 | 21 | 25.5 | 28 |
JZQB-RS31-792 | 61 | 13.5 | 29 | 9 | 16 | |
JZQE-RS31-796 | 44.2 | 9 | 23 | 10 | 12.5 | |
JZQE-RS12-846 | 48.5 | 10.2 | 48.5 | 25 | 6 | 11 |
JZQE-RS32-854 | 47.6 | 13.2 | 56.6 | 16 | 7 | 22 |
JZQE-RS12-907 | 48.5 | 10.2 | 48.5 | 25 | 6 | 10 |
JZQE-RS12-926 | 64 | 20 | 60 | 31 | 5 | 17 |
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
