Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen

Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen

  • Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen
  • Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen
  • Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen
  • Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen
  • Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen
Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: ND-TMI-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: The spot welding machine is Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 60 days per year
Contact Now
Detailed Product Description
Type: Middle Color: Customized
Condition: New Wire Diameter: Max 1.2mm
Stack Length: Max 100mm Weight: 350Kg
High Light:

armature coil winding machine

,

fusing machine



Armature commutator wire fusing machine spot welding machine welder





(1) Technical parameter:

Production name commutator spot welding machine
Wire diameter 0.05~1.2mm
Armature O.D 20~100mm
Stack length 10~100mm
Commutator bar numbe   Random
Commutator O.D 8~70mm
Power supply 220V/50/60Hz
Weight 350Kg
Dimension 1600mm*1000mm*2300mm



(2) Application:

The commutator spot welding machine is suitable for both hook and riser type commutator. It is suitable for home appliance, car and power tool motor armature.





(3) Machine function and characteristic

The armtaure rotor commutator welding machine can be used for different armatures by changing tooling.

Easy operation and adjustment.

Only Load and unload manually, welding and indexing automatically.

Equipped with Miyachi power source to ensure the stable performance.

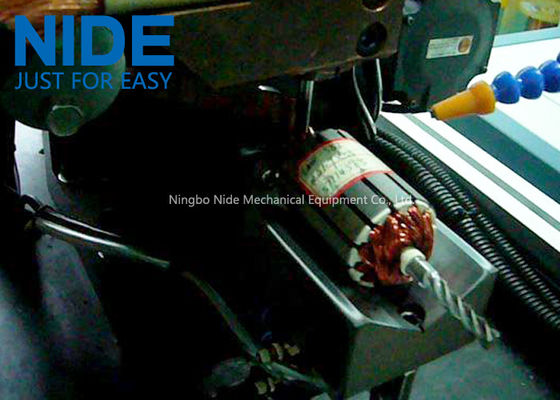

The spot wedling machine picture

Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen 0

Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen 1

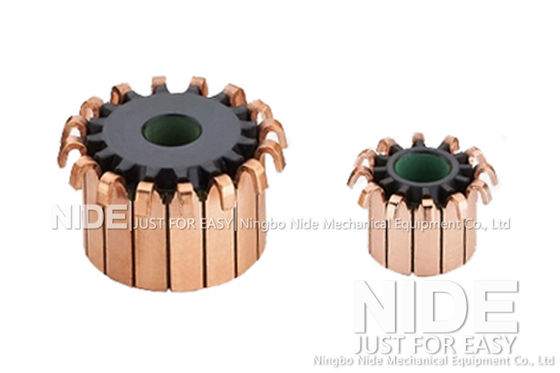

The commutator picture

Armature Wire Commutator Fusing Machine / Spot Welding Machine With Touch Screen 2
