    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: None
    Model Number: BXⅡL1-160/160

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: Wooden case suitable for sea transportation
    Delivery Time: 60 working days
    Payment Terms: T/T, L/C
    Detailed Product Description
    Weight: About 900kg Power: 3KW
    Air Pressure: 0.5~0.8MPa Dimension: 1570 X 670 X 1680mm
    Min. Stator ID: 33mm Max. Stator OD: 150mm
    Power Supply: 380V/50/60Hz Stator Stack Length: 15~120mm



    Servo Double Sides Stator Winding Lacing Machine Low Noise Automatic



    Quick Detail:

    1. PLC and touch screen control.
    2. Double needles lacing the overhang winding each side simultaneously.
    3. The machine is characterized by compact appearance, fast speed and low noise.
    4. This machine will automatically feeding and cutting and lacing.
    5. It is controlled by servo system.


    Description:

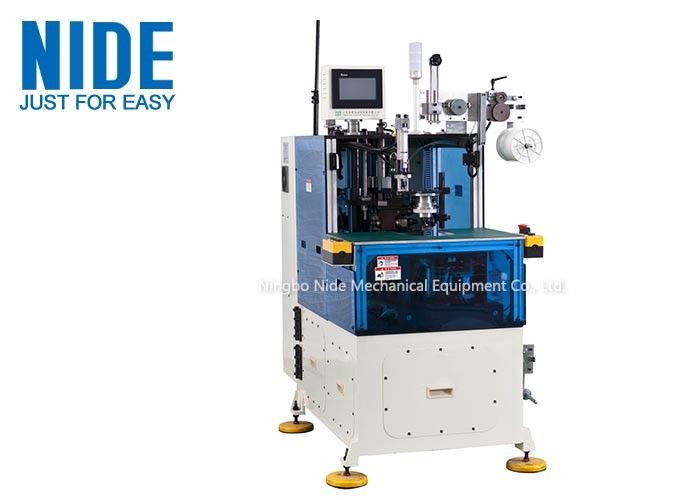

    Servo Double Sides Stator Winding Lacing Machine

    Loading stator vertically; equipped with pressing, automatic feeding, automatic cutting device, etc.; overhang winding adopts twin needle lacing by servo system simultaneously; needle indexing, hooking and stator indexing are controlled by servo system; spindle adopts frequency speed control; slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface; characterized by compact appearance, fast speed .low noise; simple operation and easy tooling change.


    Competitive advantages:

    Fast speed , low noise; simple operation and easy tooling change, double sides lacing simultaneously. PLC and touch screen control, it’s programmable.



    Applications:

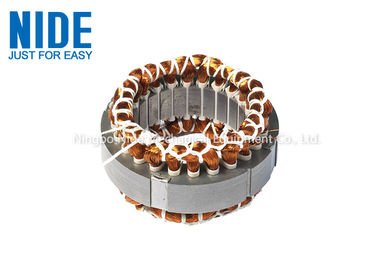

    It’s suitable for lacing the oven-hang of the induction motor stator. It is used for stator which meets the specification of below.

    Specifications :

    Min. stator ID

    33mm

    Max. stator OD

    150mm

    Over-hang height

    15~48mm

    Stator stack length

    15~120mm

    Pitch time

    About 0.5~0.7sec/slot

    Power supply

    380V/50/60Hz

    Air pressure

    0.5~0.8MPa

    Power

    3KW

    Dimension

    1570 x 670 x 1680mm

    Weight

    About 900kg
