Automobile Motor Alternator Stator Coil Winding Machine Single Working Station

China Automobile Motor Alternator Stator Coil Winding Machine Single Working Station supplier

Large Image :  Automobile Motor Alternator Stator Coil Winding Machine Single Working Station

Product Details:

Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: BXBW1-55/80

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 100set
Detailed Product Description
Name: Stator Coil Winding Machine Machine Size: Middle Size
Automation Type: Fully Automatic Working Station: Single Working Station
Customized Service: Available



Automobile Motor Alternator Stator Coil Winding Machine Single Working Station



Quick Detail:



1. This stator coil winding machine can do winding automatically.
2. This coil windning machine can wind wire into coils.
3. This winding machine is suitable for the automobile alternator stator coils winding..




Technical parameter:



  • Wire diameter: 0.5~1.8mm
  • Max stack height: 55mm
  • Max stator OD: 160mm
  • Max stator ID: 80mm
  • Jump file number: 250RPM
  • Air source: ≥0.4MPa
  • Power supply: 380V 50/60HZ 4KW
  • Weight: about 1000KG
  • Dimension:(L)1850*(W)2100*(H)2000mm



Description:

Winding spindle driving by servo motor, wire feeding, cutting and winding are automatically completed, it could use one wire or two wire parallel winding, transfer form indexing is automatically, the machine is especially suitable for automobile alternator stator coil winding.


Competitive advantages:

Variety of application, easy operation.

We have Overseas Service Center.

Machine is controlled by PLC. All the parameter can be set in the touch screen.

It is suitable for stators with different model number and dimension.

The operation and tooling change process is easy.

We could customize machine for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

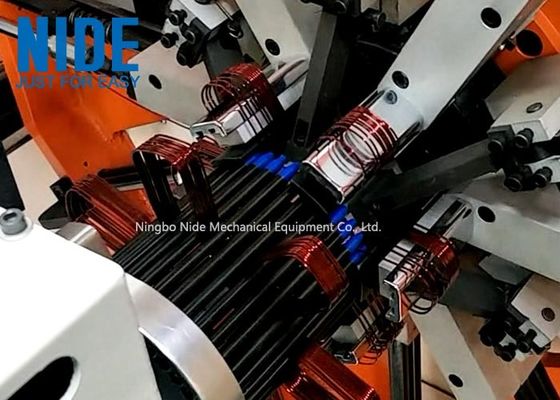

Automobile Motor Alternator Stator Coil Winding Machine Single Working Station




Click below picture to view the video.
stator winding machine
