| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | QWB1-600/150 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 sets per year |
| Machine Color: | RAL9010 Or As Per Customer Requirement | After-Sales Service: | Overseas Service Center Available |
|---|---|---|---|
| Machine Size: | Middle Size | Certificate: | CCC |
| Condition: | New | ||
| High Light: | automatic coiling machine,stator winding inserting machine |
||

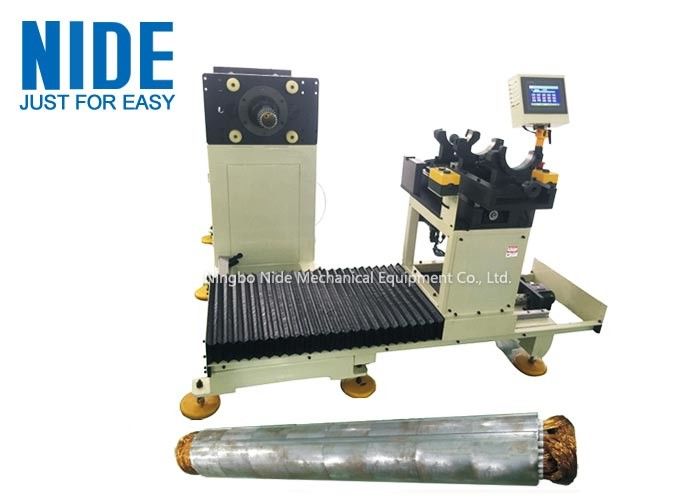

High Automation Coil Inserting Machine Deep Water Pump Coil Insertion Machine
(1) Main technicaldata
| Stator Stack length: | 300~600mm |
| Stator OD: | Max 300mm |
| Stator ID: | 50~150mm |
| Wire diameter: | 0.18~1.2mm |
| Working station: | sinlge |
| Control method: | PLC |
| Voltage: | 380V/50/60HZ |
| Power: | 3.5Kw |
| Weight: | about 1200kg |
| Dimension: | L2100*W2000*1600mm |
(2) Application
The coi insertion machin is applied to deep water pump motor and other various type of overlength motor stator.
(3) Machine mainfunction and characteristic
This is horizontal type semi-auto winding inserting machine. It adopts Mitsubishi AC servo motor and pneumatic element system drive. It si controlled by PLC and equipped with X and Y spindle auto feeding device. It can automatically insert coil and wedge into stator slot simultaneously.
(4) Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
(5) Information needed for stator winding inserting machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Wire connection drawing
4. Stator application
5 Required productivity
6 Other technical requirement

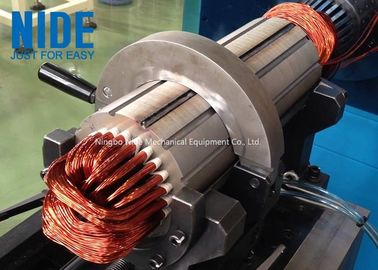

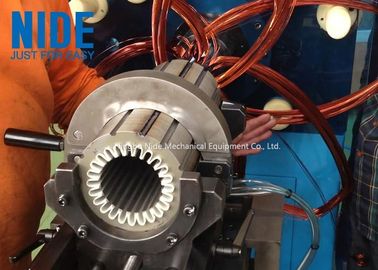

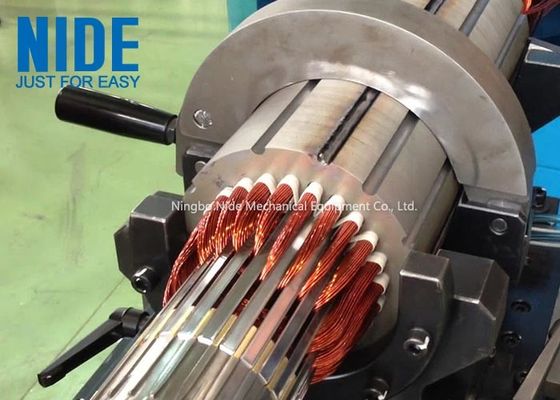

Inserting process shown in the picture of this pump motor stator coil and wedge inserting machine
