| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | ND-S2PB |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Machine Size: | Middle Size | Automation Type: | Fully Automatic |
|---|---|---|---|
| Certificate: | CCC | After-Sales Service: | Overseas Service Center Available |
| Condition: | New | Customized Service: | Available |
| High Light: | transformer winding machine,motor winding machine |
||

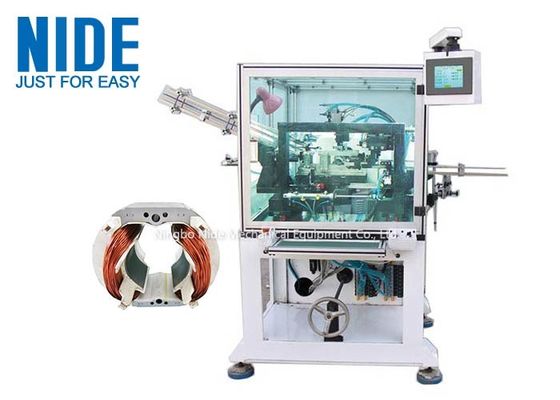

Full Automatic Stator needle Winding Machine / Aluminum , Copper Wire Winding Machine
Quick Detail:
Description:
Fully automatic multi pole stator winding machine is used to winding stator. Automatic winding, indexing and wire cutting, only load and unload stator by manually. High efficiency, stable performance and reasonable price, help you reduce cost while remain high quality.
Required material for recommending suitable machine model:
Stator drawing, winding diagram including wire diameter and turn number.
Main technical data:
|
Stator O.D |
50~130mm |
|
Wire diameter |
0.15~1.3mm |
|
Stator stack length |
10~70mmm |
|
Turn number |
0~99999 |
|
Slot number |
2 poles |
|
Air pressure |
5~7Kg/cm2 |
|
Total power |
2KW |
|
Voltage |
AC380V,50/60Hz |
|
Weight |
1200Kgs |
|
Dimension |
1500*2100*1650mm |
Information needed for Automatic Stator Coil Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3.Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.
