| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-HXQ-10 |
| Minimum Order Quantity: | 10000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 pcs per month |

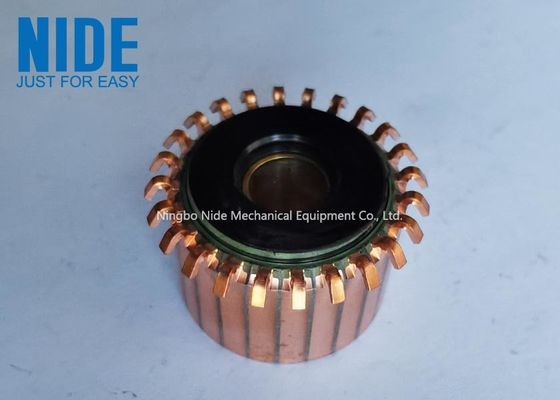

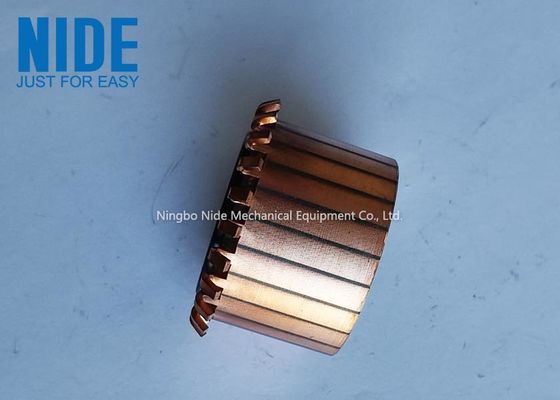

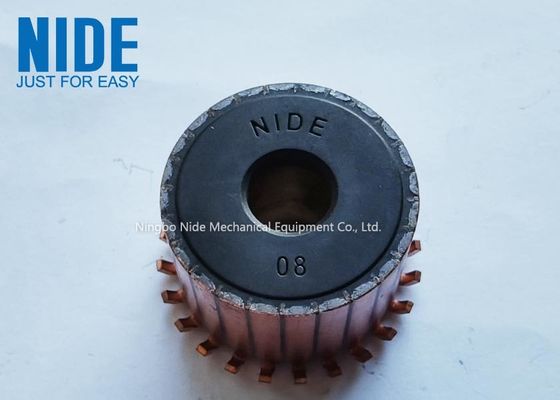

| Product Name: | Commutator | Structure: | Segmented Commutator |
|---|---|---|---|
| Used For: | Electric Motor | Type: | Hook |
| High Light: | electric motor parts,electric motor components |
||
We can manufacture hundreds types of commutator with advanced technology, stable performance and high quality according customers' requirements. We also customize commutator as per customer’s requirement.
Technical requirement
| Items | Technical parameters |
| Bar to shaft high voltage test |
Room temperature: between shaft hole and commutator segment ＞150MΩ Heating: 140℃ within 1 h, between shaft hole and commutator segment ＞100MΩ |
| I.D. Precision of commutator |
With bush: H7 Without bush: H8 |
Insulation of commutator segment |
≤1/3 nominal insulating thickness Between the segments of commutator |
| AC frequency | 50HZ 60HZ |
Copper material |
sliver copper or electrolytic copper or customized |
| Commutator type | hook type, riser type, shell type or planar type |
| Dimension |
from OD 4mm to OD 150mm. We also provide customized commutator. |
Note:
The voltage with standing tests data between the shaft and the segment of commutator and between the segments depend in the different users of the motor to complete and the users’ requirement.
Negotiation may be taken if users have other special requirements to the above data in the table.
Competitive advantages
1. Sliver copper with high intension and wear resistance
2. Long duration time
3. Wide range of commutator
4. Wide application of commutator
5. Good quality
6. Produce commutator as per customer’s drawing.

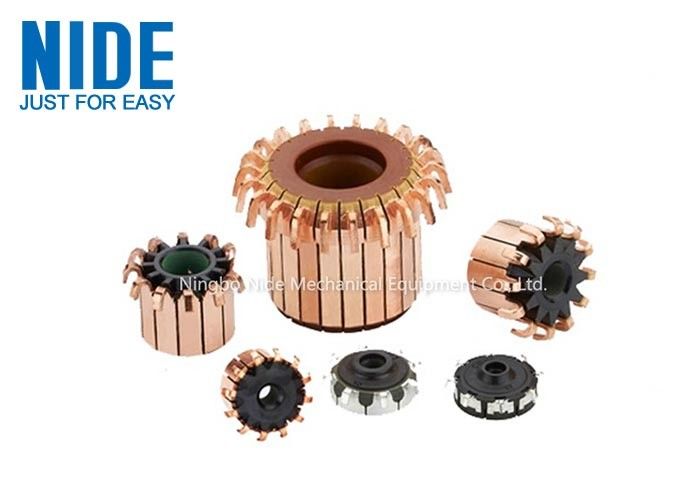

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
