Automatic Bldc Stator Winding Machine , Brushless Motor Coil Winding Machine

Automatic Bldc Stator Winding Machine , Brushless Motor Coil Winding Machine

  • Automatic Bldc Stator Winding Machine , Brushless Motor Coil Winding Machine
Automatic Bldc Stator Winding Machine , Brushless Motor Coil Winding Machine
Product Details:
Place of Origin: China
Brand Name: nide
Certification: none
Model Number: ND-SSW01-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case which is suitable for sea transportation
Delivery Time: 60 working days
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Name: Staotr Linear Winder Used For: BLDC Linear Type Stator
Color: Customized After-sales Service: Engineers Available To Service Machinery Overseas
Condition: New Stator OD: MAX 260MM
Stator Winding Speed: Max 3000rpm Type: Middle Size
High Light:

transformer winding machine

,

motor winding machine

Automatic BLDC stator linear winder , brushless motor coil winding machine





Linear winder Introduction:

The stator winding machine is suitable for BLDC Linear stator coil winding, the coil winder adopts servo motor control the winding.

During the coil winding process,It can achieve auto winding, auto wire acrossing, auto tapping, auto wire arraying, the winding speed can be set on the HMI.

The linear winder has self-diagnosis and remote diagnosis function, the output can be stored inside the HMI.

The linear winding machine is easy to operate and high in efficiency, which greatly improves work efficiency and reduces labor costs.





Linear winder Specification:

Production name : BLDC stator linear winder
Wire diameter : 0.5-1.3mm
Stator O.D. : 60-260mm
Stator stack length : 6-50mm
Winding speed : 500-3000 R.P.M
Spindle No. : 4 spindles
Voltage : 380V 50/60Hz
Weight : about 400kg
Dimension : 1000*1300*1500mm

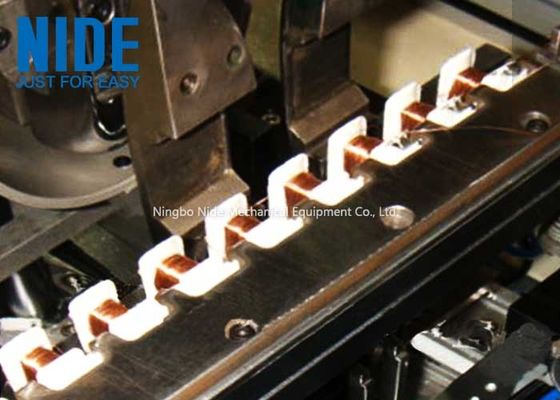

The BLDC stator completed by linear winder winding

linear winder , linear winding machine , coil winding machine , stator winding machine
